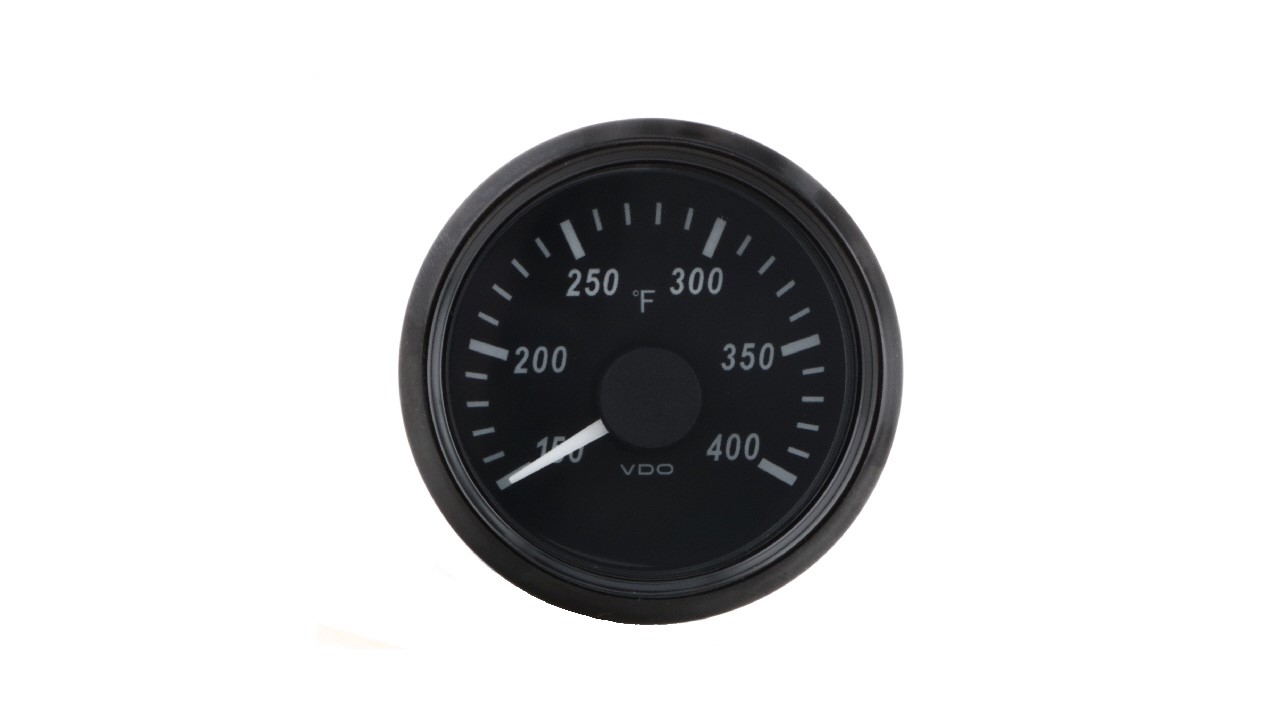

SingleViu 2 1/16in (52mm) 400°F cylinder temperature gauge
• 482-14Ω Default input
• RGB LED illumination (default illumination set to white)
• Water resistant front & rear
• Includes required harness
• Use with VDO 400F/200C rated temperature senders

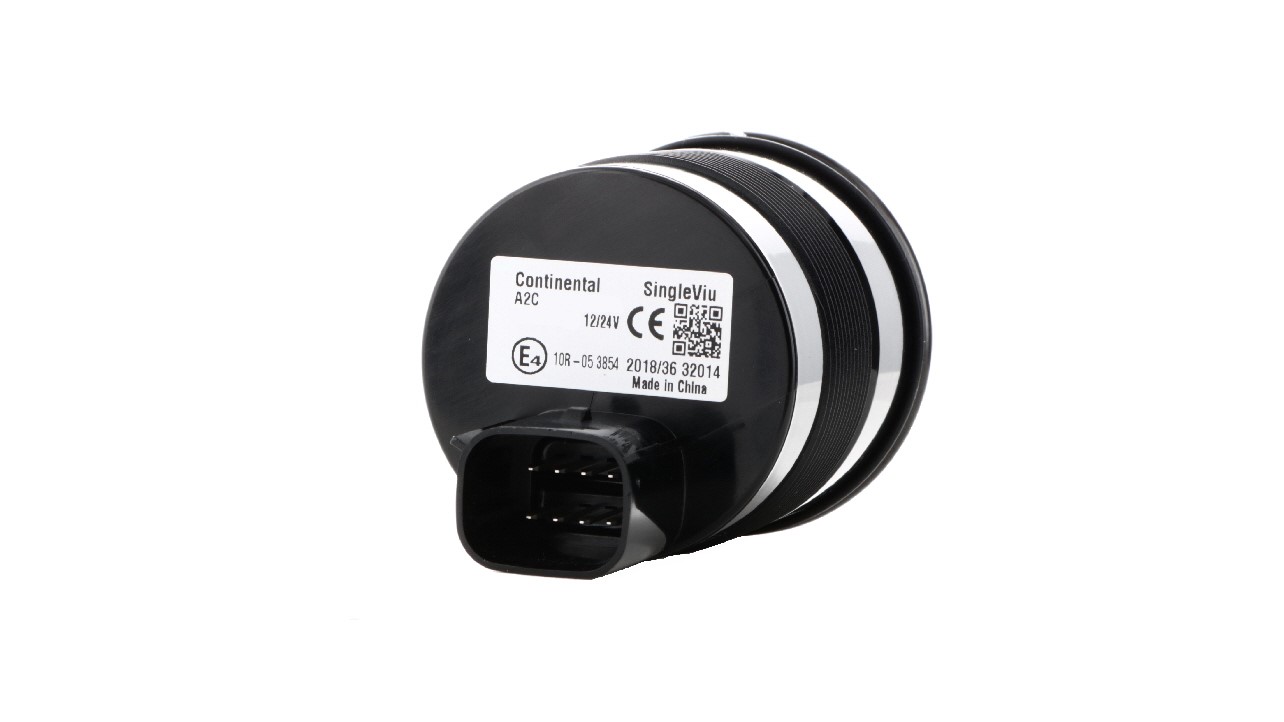

SingleViu 2 1/16in (52mm) 400°F cylinder temperature gauge. Accepts J1939 inputs or 482-14Ohm (VDO) sender signal. Features RGB illumination and dual fog free lens. Uses standard Molex connector (part number 2910000484200, sold separately). Works on both 12V or 24V systems.
SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each ‘smart’ SingleViu gauge has it’s own mircoprocessor, which allows it to have a dual-input capability with no additional software or hardware (such as signal converters, black-boxes or master gauges). Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.
