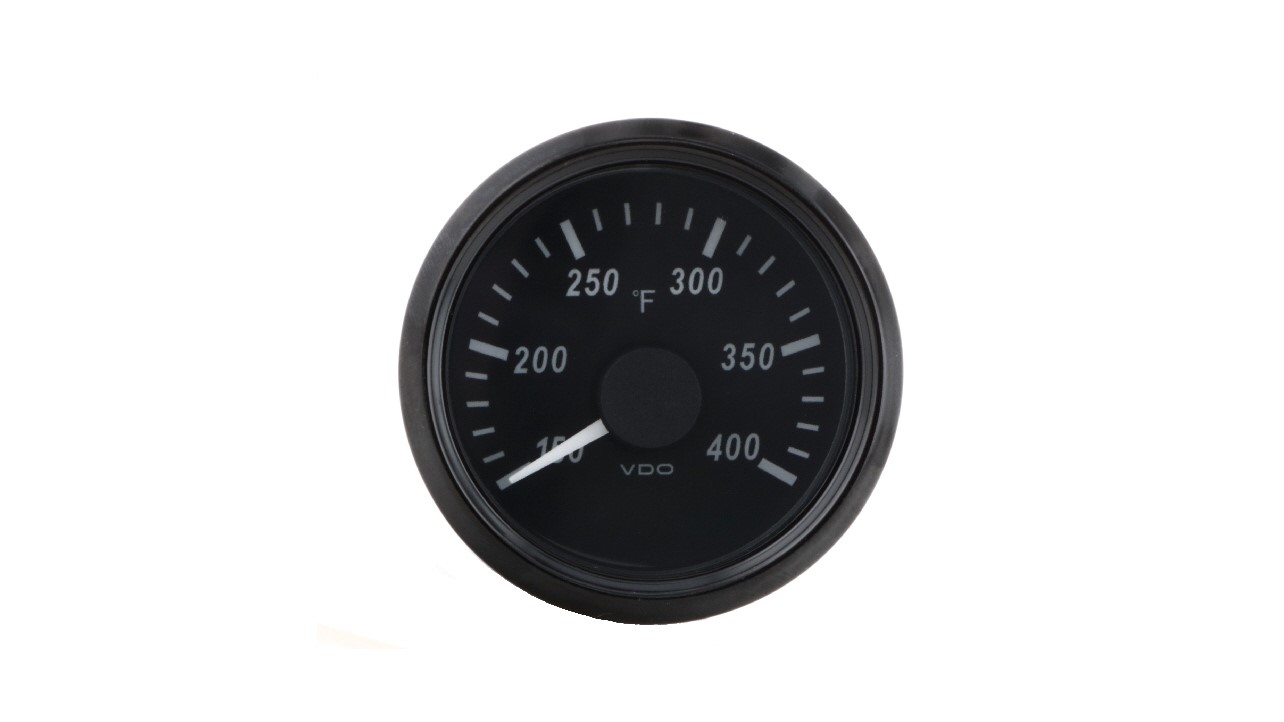

SingleViu 2 1/16in (52mm) 400°F cylinder temperature gauge
• 482-14Ω default input. Switchable to CAN J1939
• Input ohm curve can be modified with SingleViu Configuration Tool
• RGB LED illumination (default illumination set to white)
• Programmable warning light
• Water resistant front & rear

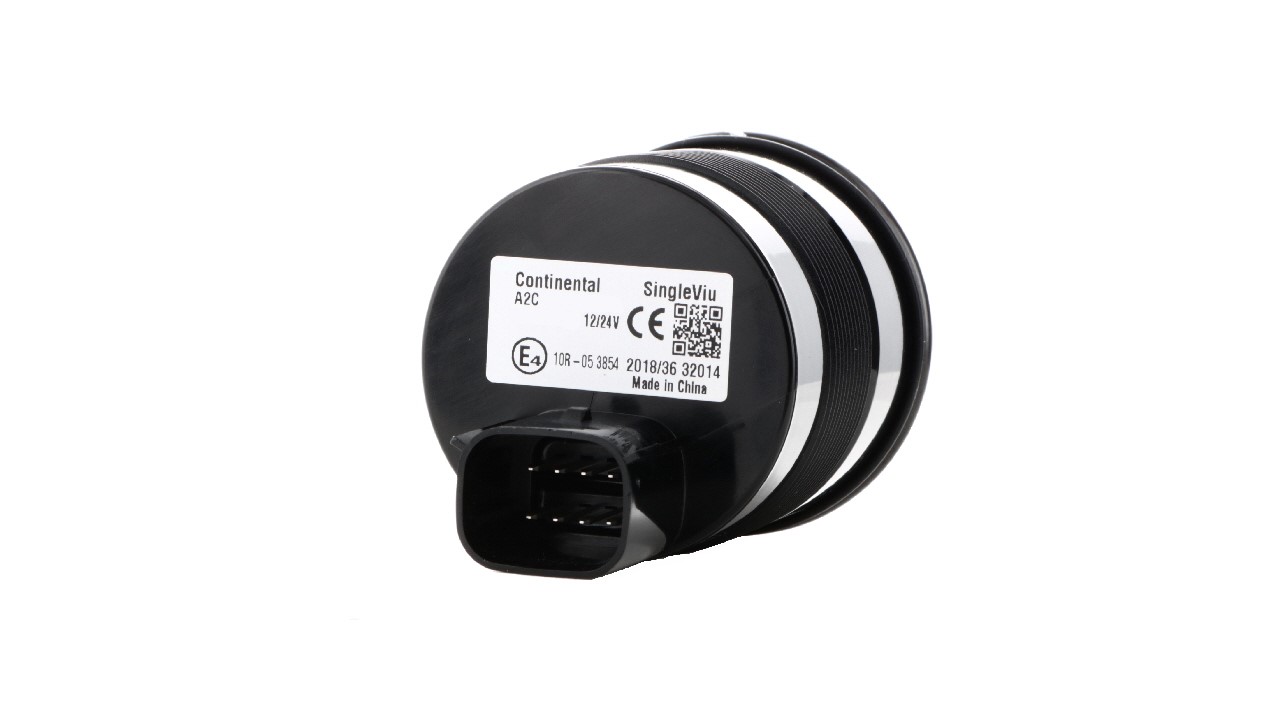

• OEM packaging. Requires standard Molex MX 150 waterproof connector (sold separately)
• Also available in retail pack with harness: A2C3833530030 (present to analog for use with traditional senders) or A2C3833530035 (present to CAN J1939)
SingleViu 2 1/16in (52mm) 400°F cylinder temperature gauge. Accepts J1939 inputs or 482-14Ohm (VDO) sender signal. Features RGB illumination and dual fog free lens. Uses standard Molex connector (part number 2910000484200, sold separately). Works on both 12V or 24V systems.
SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each ‘smart’ SingleViu gauge has it’s own mircoprocessor, which allows it to have a dual-input capability with no additional software or hardware (such as signal converters, black-boxes or master gauges). Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.
